Electric Circuit Breaker Circuit Breaker 3P MCB 230v Mini Inverter Circuit Breaker
Product Description
Product DescriptionProduct Overview40A 63A 100A 125A 250A 400A 630A 3 Pole 4 Pole Moulded Case circuit breaker MCCB
GSL1 series residual current operated circuit -breaker(hereafter simply reffered to as breakers) are one of the new type of breakers which have been developed by the company using advanced design and manufacturing technology.The rated insulation voltage of the breakers is 800V,suitable for turn-on of turn-off not frequently in the circuit of AC50Hz,rated working voltage 400V and rated working current up to 630A. The breakers equipment against damage may caused by long -term existed earth fault, which can't be examined by the over-current protection device.
Product feature △ The breakers have the following characteristics: compact size,high breaking capacity, short arc -over distance and shakeproof,etc. △ The breakerscould be installed vertically(upring) or horizontally(transverse). △ The breakers can't be fed inversely,only allowing 1,3,5 connect with power supply wires,2,4,6 connect wth load wires. △ The breakers are applicable to isdation, its corr- esponding symbol is shown as“ ”. ■ The breakers comply with the demands of the following standards; △ IEC60947-1 and GB14048.1General △ IEC60947-2 and GB14048.2Low voltage breakers and appendix B MCCB with residual current protection △ IEC60947-4-1 and GB14048.4Electro-mechanical contactors and motor starters △ The breakers acquired the "CCC" certificates approved by CQC (China Quality Centification Center) Applied environment △ Elevation of installtion site:≤2000m;Ambienttemperature:-5℃~+40℃,and average temperature in 24 hours below +35℃(except special ordering). △ Relative humidity:not exceeding 50% at the maxinum ambient temperature of +40℃.With lower temperature higher humidity would be permitted, for example,reaches 90% at the dews on products surface due to temperature change. △ Pollution protection :Grade 3. △ Installing categoties:Ⅲ for breakers' main circuits; Ⅱ for auxiliary circuit and control circuit without connecting with main circuit. There must be not any explosive medium,and there must be not any gas which would destroy the insulation. △ The place would not be invaded by rain and snow. △ The breaker should bu installed according to stipulations in operations in operation manual.
Product Parameters
Company ProfileCompany Introduction
Lanzhou Great Wall Electrical Power Equipment Co., Ltd (shorted as EPE) was established in 2009 with with a registered capital of 80 million yuan. EPE is a wholly-owned subsidiary of LanzhouGreat Wall Electrical Group Co.Ltd (shorted as GWE, state-controlled listed company).
The main business for electrical appliances and complete sets of equipment and system integration, integrated automation controlsystem, such as sales, installation, technical services and domestic and foreign project contracting.Relying on the advanced R & Dability, innovative technology and manufacturing level of Great Wall Electrical, the company implements all-round operationmanagement, establishes product quality with professional quality, and creates value for customers. As the market planning and marketing window of GWE, Lanzhou Great Wall Electrical Power Equipment Co. Ltd shoulders the mission of system integration of high and low voltage distribution device, high and low voltage electrical components, power generation and industrial automation control device.

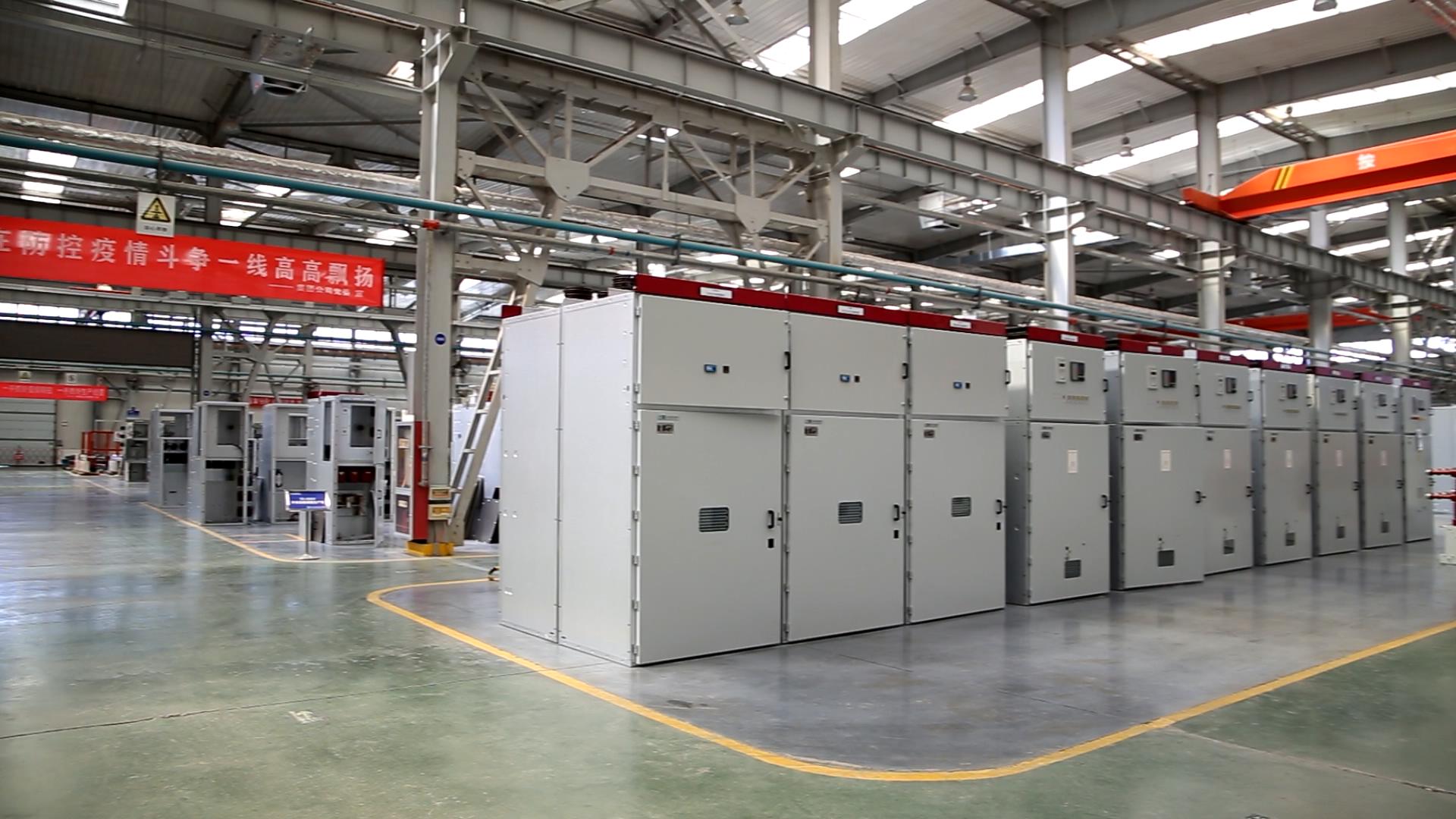

Factory SceneExhibitionCertificationsChangcheng 0.4~126kV MV&LV Switchgear and VCB and other componentsTop 100 certificate of China Electrical Industry"二一三“Low voltage contactors,MCB,relays,meters and other components.Packing & DeliveryFAQQ: Are you a manufacturer or trading company?A:We are a state-owned manufacturer with over 50year's experience. Our factory has passed ISO9001.
Q:Is there a minimum order requirement(MOQ)?A:Yes.
Q:Do you accept OEM or ODM?A:Yes. Our R&D team owns latest technology. We can R&D , produce product according to customers' request.
Q:What is your warranty policy?
A:1 year. Contact us if you need more details on Electric Circuit Breaker. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Circuit Breaker 3p Mcb、230v Mini inverter Circuit. If these products fail to match your need, please contact us and we would like to provide relevant information.
GSL1 series residual current operated circuit -breaker(hereafter simply reffered to as breakers) are one of the new type of breakers which have been developed by the company using advanced design and manufacturing technology.The rated insulation voltage of the breakers is 800V,suitable for turn-on of turn-off not frequently in the circuit of AC50Hz,rated working voltage 400V and rated working current up to 630A. The breakers equipment against damage may caused by long -term existed earth fault, which can't be examined by the over-current protection device.
Product feature △ The breakers have the following characteristics: compact size,high breaking capacity, short arc -over distance and shakeproof,etc. △ The breakerscould be installed vertically(upring) or horizontally(transverse). △ The breakers can't be fed inversely,only allowing 1,3,5 connect with power supply wires,2,4,6 connect wth load wires. △ The breakers are applicable to isdation, its corr- esponding symbol is shown as“ ”. ■ The breakers comply with the demands of the following standards; △ IEC60947-1 and GB14048.1General △ IEC60947-2 and GB14048.2Low voltage breakers and appendix B MCCB with residual current protection △ IEC60947-4-1 and GB14048.4Electro-mechanical contactors and motor starters △ The breakers acquired the "CCC" certificates approved by CQC (China Quality Centification Center) Applied environment △ Elevation of installtion site:≤2000m;Ambienttemperature:-5℃~+40℃,and average temperature in 24 hours below +35℃(except special ordering). △ Relative humidity:not exceeding 50% at the maxinum ambient temperature of +40℃.With lower temperature higher humidity would be permitted, for example,reaches 90% at the dews on products surface due to temperature change. △ Pollution protection :Grade 3. △ Installing categoties:Ⅲ for breakers' main circuits; Ⅱ for auxiliary circuit and control circuit without connecting with main circuit. There must be not any explosive medium,and there must be not any gas which would destroy the insulation. △ The place would not be invaded by rain and snow. △ The breaker should bu installed according to stipulations in operations in operation manual.
Product Parameters
Type | GSL1-100 | GSL1-225 | GSL1-400 | GSL1-630 | |||||||||||||
Frame Current In m | 100 | 225 | 400 | 630 | |||||||||||||
Rated Current In | 16、20、25、32、40、50、63、80、100 | 100、125、140、160、180、200、225 | 225、250、315、350、400 | 400、500、630 | |||||||||||||
Pole Number | 3 | 4 | 3 | 4 | 3 | 4 | 3 | 4 | |||||||||
Rated Insulation Voltage U i | AC800 | ||||||||||||||||
Rated operation Voltage U i | AC400 | ||||||||||||||||
Rated impulse Withstand Voltage | 8000 | ||||||||||||||||
Arc-over Distance | ≤50 | ≤100 | |||||||||||||||
Limiting Short-circuit Breaking Ability Ics | AC400 | 50 | 65 | ||||||||||||||
Operating Short-circuit Breaking Ability Ics | AC400 | 35 | 42 | ||||||||||||||
Rated residual Working Current | 30000 | 1000000 | |||||||||||||||
Delay time(s) | (undelay) /0.25/0.9/1.9 | ||||||||||||||||
Rated residual Non-acting Current | 1/2 I▲n | ||||||||||||||||
Operating Performance(time) | 1/4 Icu |
Lanzhou Great Wall Electrical Power Equipment Co., Ltd (shorted as EPE) was established in 2009 with with a registered capital of 80 million yuan. EPE is a wholly-owned subsidiary of LanzhouGreat Wall Electrical Group Co.Ltd (shorted as GWE, state-controlled listed company).
The main business for electrical appliances and complete sets of equipment and system integration, integrated automation controlsystem, such as sales, installation, technical services and domestic and foreign project contracting.Relying on the advanced R & Dability, innovative technology and manufacturing level of Great Wall Electrical, the company implements all-round operationmanagement, establishes product quality with professional quality, and creates value for customers. As the market planning and marketing window of GWE, Lanzhou Great Wall Electrical Power Equipment Co. Ltd shoulders the mission of system integration of high and low voltage distribution device, high and low voltage electrical components, power generation and industrial automation control device.
Factory SceneExhibitionCertificationsChangcheng 0.4~126kV MV&LV Switchgear and VCB and other componentsTop 100 certificate of China Electrical Industry"二一三“Low voltage contactors,MCB,relays,meters and other components.Packing & DeliveryFAQQ: Are you a manufacturer or trading company?A:We are a state-owned manufacturer with over 50year's experience. Our factory has passed ISO9001.
Q:Is there a minimum order requirement(MOQ)?A:Yes.
Q:Do you accept OEM or ODM?A:Yes. Our R&D team owns latest technology. We can R&D , produce product according to customers' request.
Q:What is your warranty policy?
A:1 year. Contact us if you need more details on Electric Circuit Breaker. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Circuit Breaker 3p Mcb、230v Mini inverter Circuit. If these products fail to match your need, please contact us and we would like to provide relevant information.
