Hot Runner Spring Coil Heater W/ K Thermocouple

  • Hot Runner Spring Coil Heater W/ K Thermocouple
  • Hot Runner Spring Coil Heater W/ K Thermocouple

Hot Runner Spring Coil Heater W/ K Thermocouple

    Unit Price: 4.2 USD
    Min. Order: 1 Piece/Pieces
    Packaging: vacumm pack / outer carton
    Transportation: Air,Ocean,Express
    Supply Ability: 100000 per month

Basic Info

Model No.: HRH4

Product Description

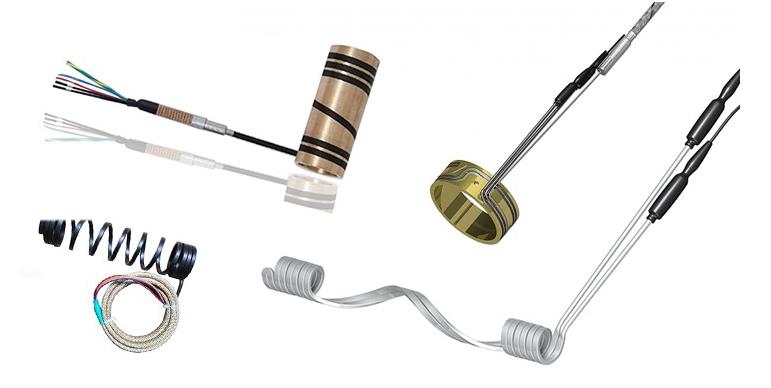

Hot runner coil heaters are majorly used in the plastic and packaging industry in order to heat the parts in various shapes and geometries. Hot Runner Heaters and Mould Heaters encompasses high performance and they are used when space is limited. They need high power and are narrow and flat heating elements. Hot runner injection mould heaters can be in diverse shapes and geometries.

With the heavy usage of these heaters, there is a huge demand for Hot Runner Mould Heater Manufacturers in the market. Hot runner coil heaters are also used in the chemical process, hot-stamp, automotive and glass industries, cast and wood processes too.

Technical Data:

Product name
Industrial electric spring hot runner coil copper brass sealed nozzle mica band heater for plastic machinery
Insulation Material
High Pure MgO
Resistance Wire
Cr20Ni80
Die Electrical Strength
800V A/C
Resistance tolerance
10%

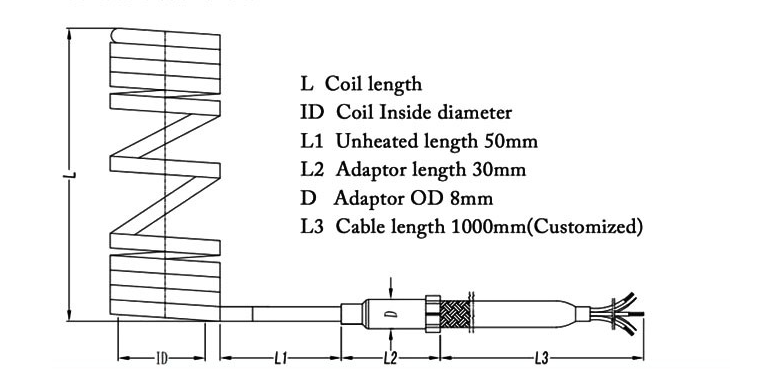

Heating coil I.D
8mm~40mm
Max power density
9W/cm²
Cross sections optional
2.2x4.2mm 3x3mm 3.4x3.4mm 3.5x3.5m 4x4mm, any other cross-sections can be supplied on request
High voltage stability test
Less than 0.5mA leak under 1000V for 30 seconds
Cold zone length
50mm standard, and other sizes available
D of cold zone adaptor
8x30mm and 6.35x25mm optional
Standard leads
1000mm black PTFE wire over 300℃
Working life
10,000 hours under less than 400℃ minus and 2000 hours at 700℃
Surface treatment
Silver sandblasted or black

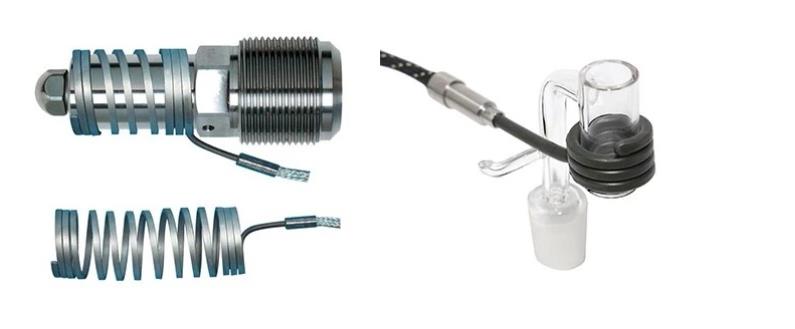

-- Hot runner heater for Applications

1.Injection Molding Machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Molding Machine Nozzles
6. PET preform & Thin wall container Molds
7. Hot runner Manifolds
