The methods of water treatment include physical treatment and chemical treatment.
water treatment system,also called filtration sterlizer,is the process of purifying the raw water by series equipments and devices to be drinkable.Raw water goes through water treatment system first: raw water pump - multi-media filter - activated carbon filter- precision filter - ultraviolet sterilizer - reverse osmosis device - Ozone generator, then achieve desired standard water quality. Finally, store the treated water in the storage tank.
Zhangjiagang Industrial 8000LPH drinking ballast Waste Grey Salty Water RO filter systems machinery Plant water treatment system
Product Description
Product Intruduction
1 / Water treatment equipment description.
RO Reverse osmosis system

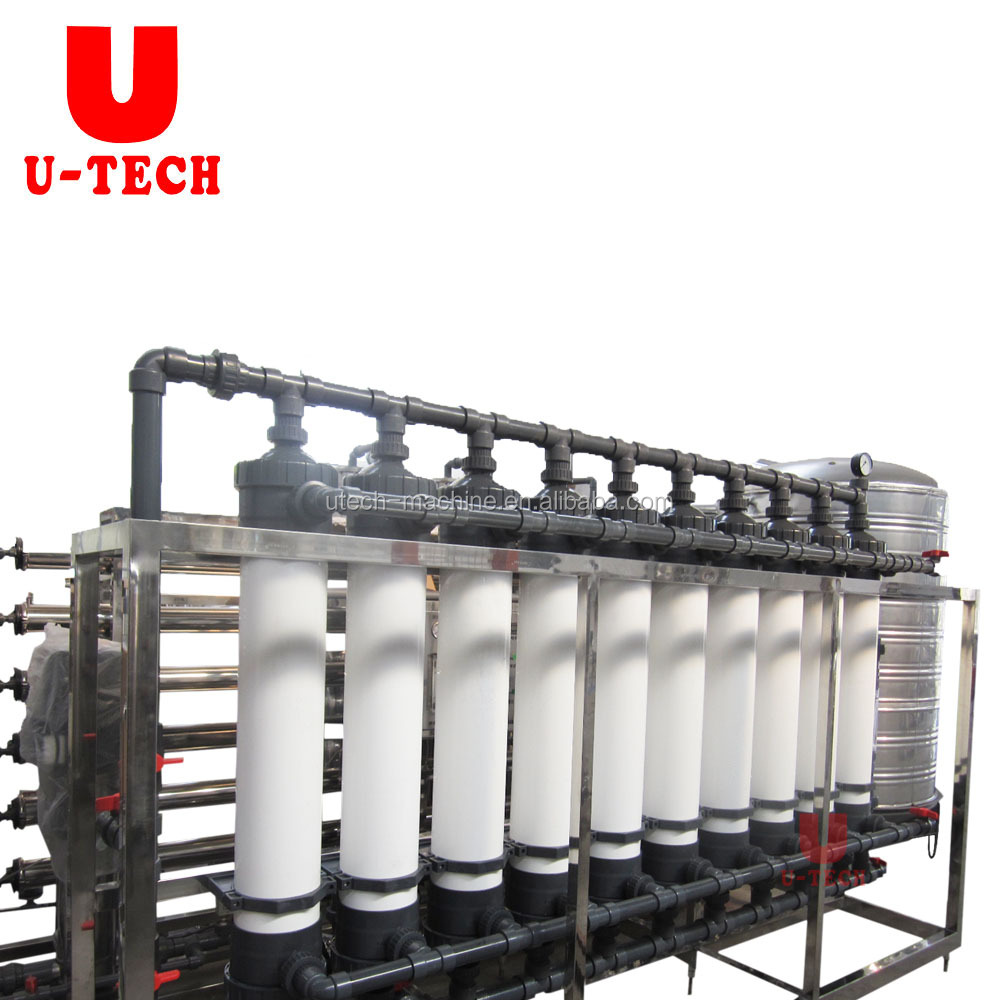

Hollow ultrafiltration

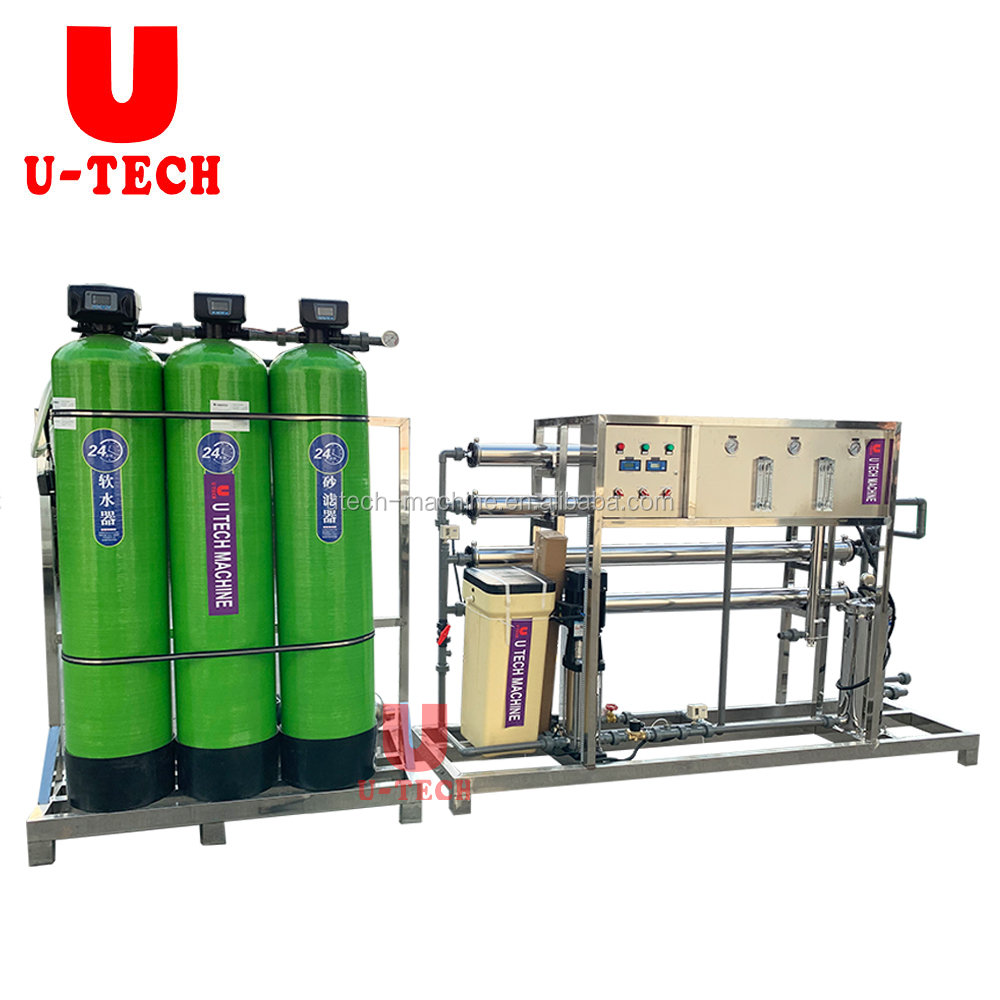

FRP water treatment

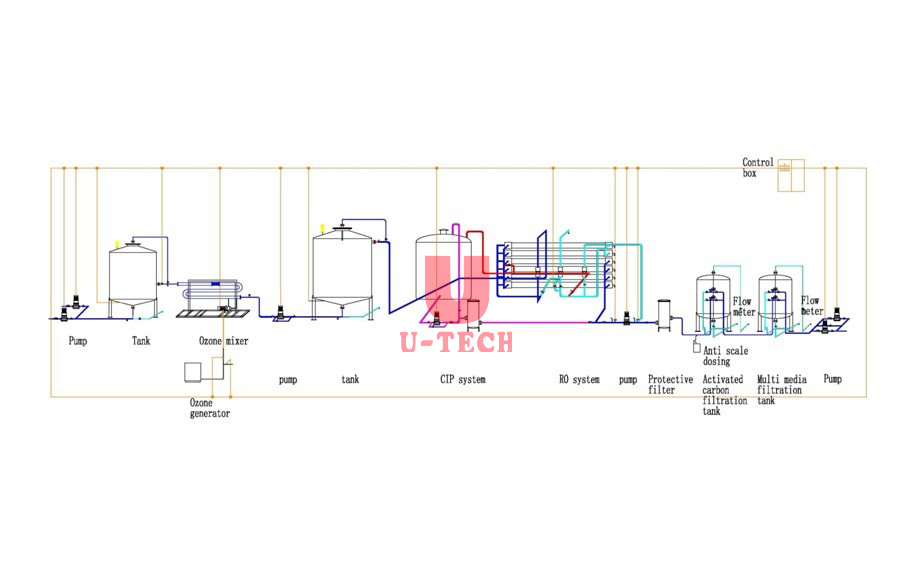

Description and Flow

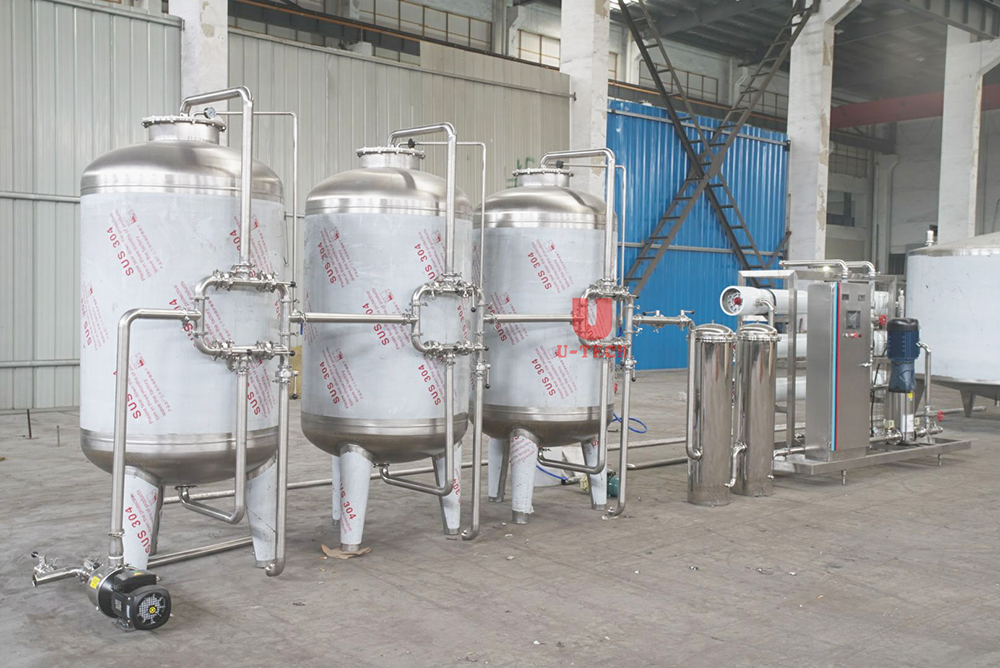

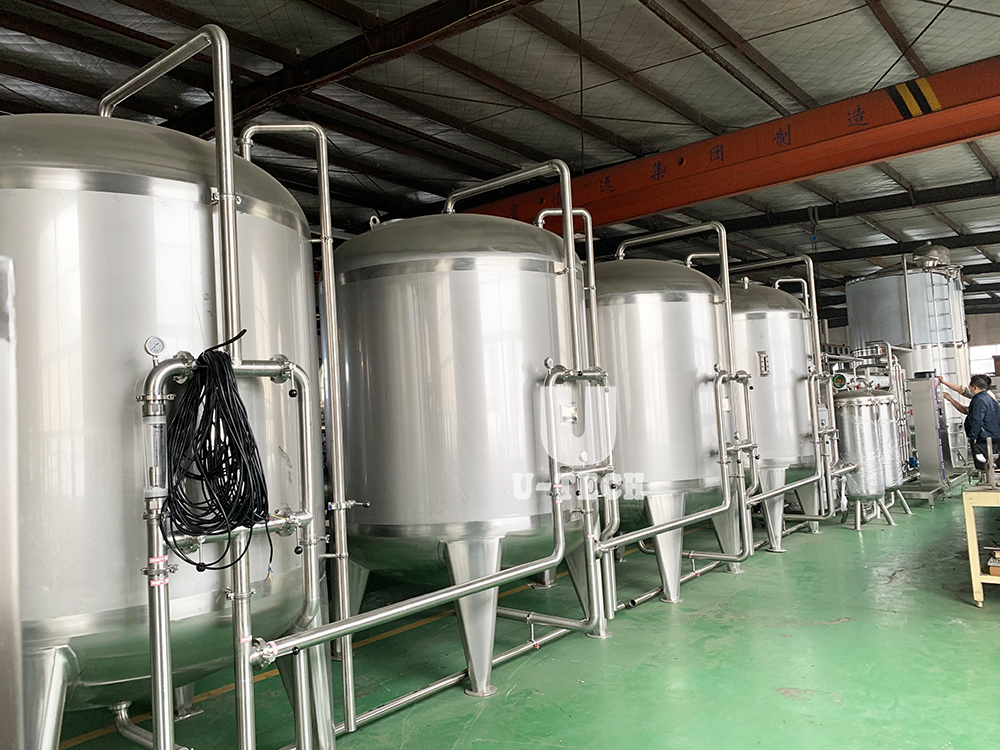

Quartz sand filter | ||
This device is used in the first filtration of water treatment. It consists in 304stainless steel. There is quartz sand inside. It divides coarse sand, medium sand and fine sand. It can remove dirty and other big particle | ||
Active carbon filter |
Activated carbon filter is used in the second filtration of water treatment and filter medium is activated carbon.It can adsorb Hg, plum bum and other heavy metal, organic contamination, odor and improve water sense.u includes pressure gauge, air release valve, valve group. |
Ion exchanger |
The exchanging device is for reducing the hardness of hard water. Raw water goes through the exchanger from top to bottom, to be softened by the sodium ion exchanger inside the device. The positive ions of magnesium and calcium are exchanged with that of sodium. |

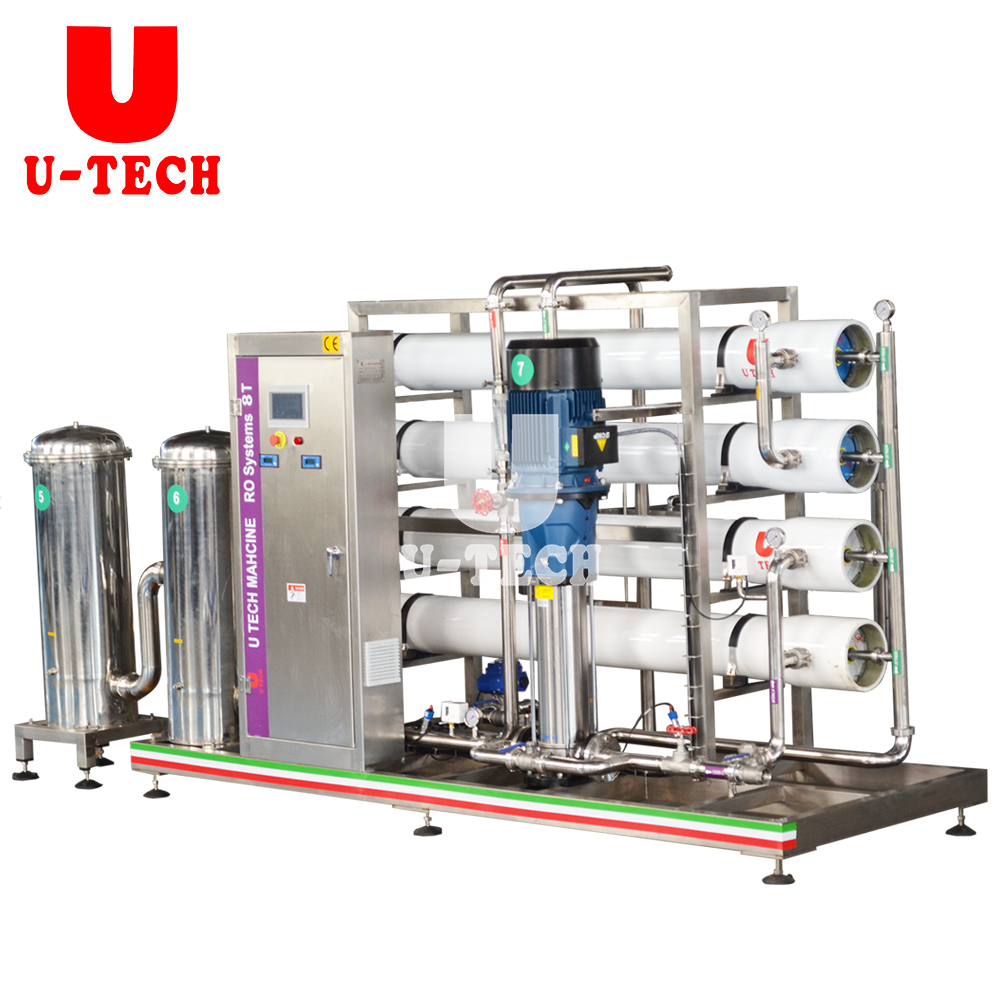

Reverse Osmosis Equipment(RO)
Reverse osmosis is a membrane separation technique that uses pressure as a driving force by selecting a function of permeating (semi-transmissive) membrane. When the pressure applied in the system is greater than the osmotic pressure of the aqueous solution, the water molecules continuously permeate the membrane. The impurities flowing into the central tube through the product water channel and then flowing out of the water at one end, such as ions, organic matter, bacteria, viruses, etc., are trapped on the water inlet side of the membrane, and then flow out at the concentrated water outlet end, thereby achieving the purpose of separation and purification.
First stage pretreatment. (Sand filter)
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. In addition, the activation process, the surface of activated carbon to form non-crystalline parts of some oxygen-containing functional groups, these functional groups can have a chemical adsorption of activated carbon catalytic oxidation of bad news, to restore the performance, can effectively remove a number of metal ions in water.
Third stage pretreatment (Resin softener)
Cationic resin used for water softening, primarily to remove hardness of water.and other objects at the same time the quality of the release of sodium Na + ions flow from the softener in the water is removed from the softened water hardness ions. So as to effectively prevent the reverse osmosis membrane fouling
Fourth stage pretreatment (Micron filter)
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, to further reduce the turbidity, to meet the next process of the water requirements of the protection of the next long-running processes.
Water feeding pump
Requested access to the system's raw water has a stable flow and pressure, its purpose is to prevent water fluctuations have an impact on the system operation to ensure the stability of the system into the water.
Silica sand filter
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water
Soften the water.
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.
It can remove the suspended solids and gluten particles in the water, thus reduce the turbidity of water.
Active carbon filter
It can remove the pigment, smell and a large number of biological organisms in the water
Soften the water.
Sodium ion exchanger
It can remove calcium and magnesium ions in the water, so as to soften the water.

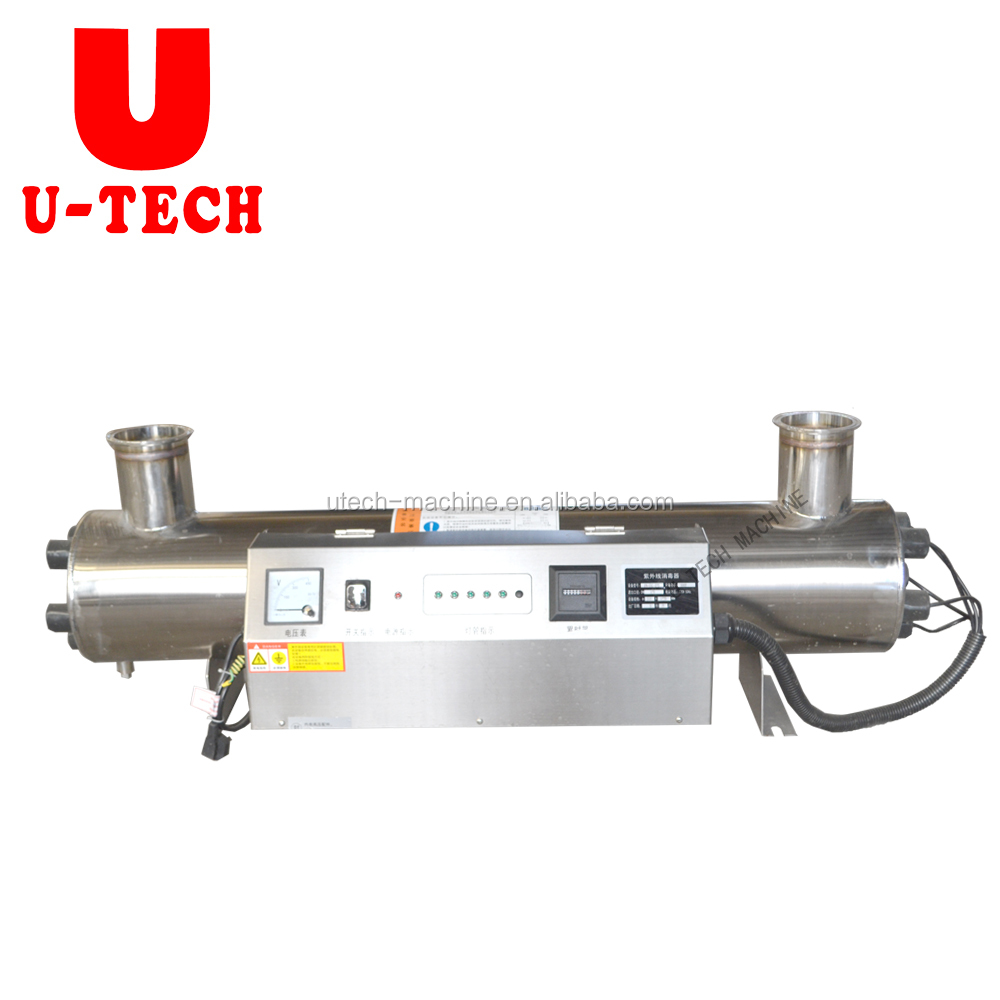

UV sterilize
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
Ozone generator

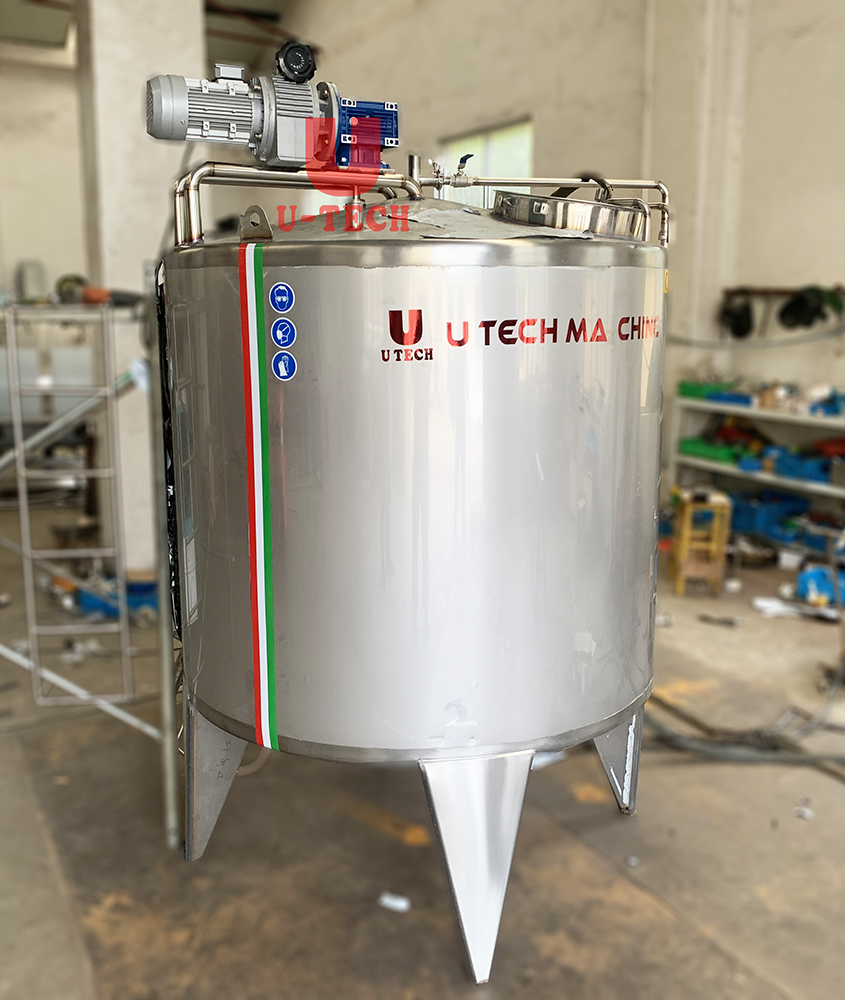

Water tank with mixer tower
Application field:
Preparation of pure water and ultrapure water in industries such as electronics, medical, food, and boiler feed water. Preparation of space water, distilled water and purification of beer and beverage water. Pre-desalting treatment of high pressure boiler feed water. Desalination of seawater and brackish water. Pharmaceutical, textile, chemical, food and other industries for separation,concentration, liquid decolorization for the purpose of the process. The recovery and application of useful substances in aqueous solutions in industrial production. Other separation processes for the purpose of separating bacteria, heat sources,colloidal particles and organic matter.
Control system
Related Products
Package and Delivery
Delivery
Packaging Type:
Conventional packaging: inside is wrapped with PE film,outside is wooden box
Conventional packaging: inside is wrapped with PE film,outside is wooden box
Delivery.
The normal delivery period is 15 days, depending on the equipment, the specific time is about 15 to 30 days.
The normal delivery period is 15 days, depending on the equipment, the specific time is about 15 to 30 days.
About U TECH
Certifications
FAQ
Q1:Do you have any reference project?
A1:We have reference project in most countries, and you can visit their factories if we get the permission of the customer.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3: Do you provide customized service?
A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
A3: We will customize the machine according to your needs, materil ,power,filling type,the kinds of the bottles and so on.
Q4:When can I get my machine after I paid?
A4:We will deliver the machines on time as the date we agreed both side.
Q5:How can I install my machine when it arrives?
A5:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Would like to know more about U TECH MACHINE equipments, feel free to send us an inquiry!
